Product Description:

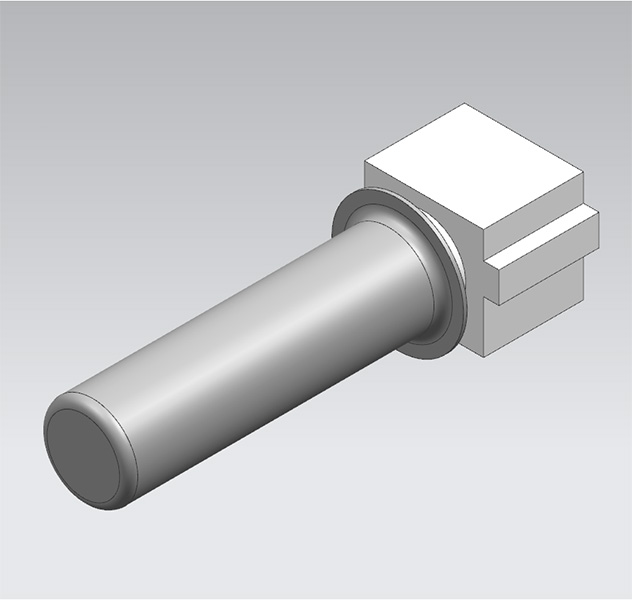

Temp. Sensor for Washing Machine
The sensor of washing machine belongs to Kemit CWF2 series, which is a sensor element made of semiconductor material NTC thermistor and packaged with metal shell for temperature sensing head. The application range of this series of sensors is - 40 ℃ to 130 ℃. The main components are stainless steel shells, injection molded parts, etc.
Application
. Washing machine.
Accessories (customized requirements)
. Contact terminal
. Injection molded parts
Specifications
| Sensor family | CWF2 series metal shell encapsulation type |
| Operating temperature range | -40 ℃ to 130 ℃ (limited by temperature sensing elements, wire rods, etc.) |
| Type of temperature sensing element | NTC thermistor (Kemin MF51 series) |
| Resistance specification | 1.024KG3966，1.204KG3941 |
| Head packaging form | Metal enclosed type |
| Shell material | SUS304 |
| Head package size | Customized size and shape |
| Dielectric Strength | 1500VAC, 3S, 0.5mA (conventional, optional) |
| Thermal time constant | ≤ 15s (in thermostatic oil bath) |
| Dissipation coefficient | ≥ 2.5mW/℃ (25 ℃, in still air) |
| Rated power | 150mW (25 ℃, in still air) |
Customized service
. Above accessories
Shell size, shape and material
. Line type, line length
The resistance value, B value and precision of NTC thermistor can be customized
