Product Description:

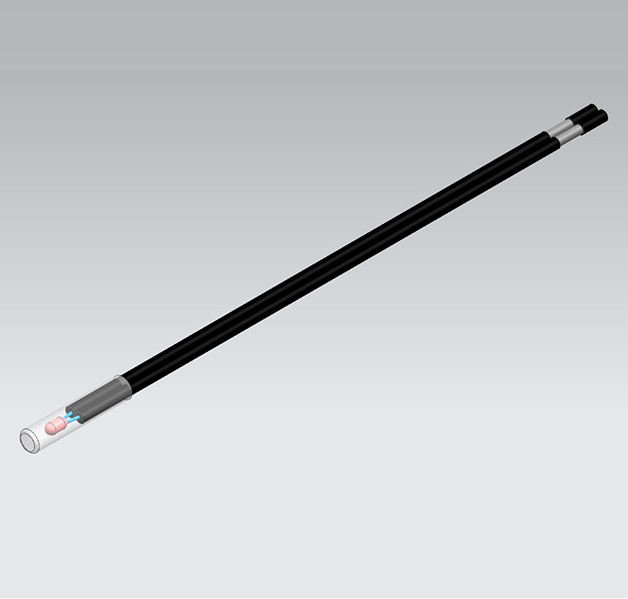

Temp. Sensor for Car Charging Socket
?xml:namespace>
The sensor of the automobile charging system adopts a lead wire type sensing element made of the semiconductor material NTC thermistor.
The application range of this series of sensors is - 40 ℃ to 125 ℃.
The shell is encapsulated by metal shell, plastic shell or special encapsulation. The lead can be made of PVC wire, silica gel wire, XLPE wire
and other wire materials with 20~30 wire diameters that meet UL and environmental certification. With high voltage resistance, high moisture
resistance, safety and reliability.
Application
. Charge pile
. Charging gun
. Charging base
Accessories (customized requirements)
. Connector
. SLEEVE
Specifications
Sensor family | CWF2/CWF3/CWF5 series metal shell encapsulation type |
Operating temperature range | -40 ℃ to 125 ℃ (limited by temperature sensing elements, wire rods, etc.) |
Type of temperature sensing element | NTC thermistor (Kemin MF51 series), PT series |
Resistance specification | 10KF3435,10KF3950, PT100、PT1000 |
Head packaging form | Metal shell package, plastic shell package, special package |
Shell material | SUS304, plastic housing |
Head package size | Customized size and shape |
Dielectric Strength | 1500VAC, 3S, 0.5mA (conventional, optional) |
Thermal time constant | ≤ 15s (in thermostatic oil bath) |
Dissipation coefficient | ≥ 2.5mW/℃ (25 ℃, in still air) |
Rated power | 150mW (25 ℃, in still air) |
