Product Description:

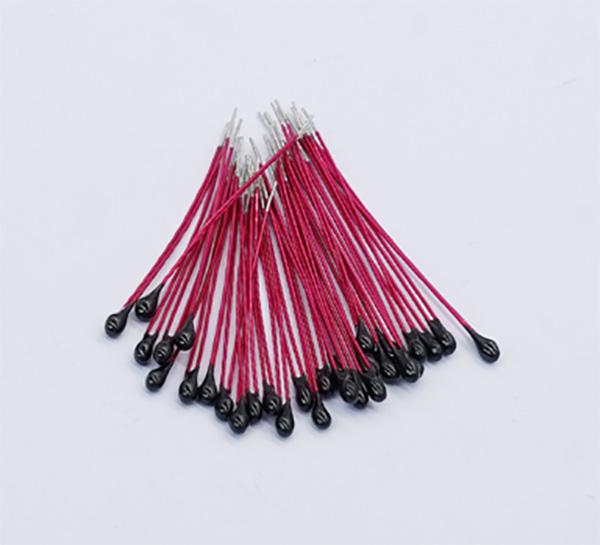

MF52E Series Epoxy Sealed Radial NTC Thermistor With Enameled Lead Wire
The epoxy enameled wire NTC thermistor is a resin sealed lead insulated radial thermistor.
Small size, fast response, wide range of applications.
Features
· Package Form: Epoxy Resin Package
· Operating Temperature Range: -40℃～+125℃
· Insulation Resisance: ≥500VDC 100MΩ
· Thermal time constant: ≤5S（In a constant temperature oil tank)
· Dissipation coefficient: ≈2.6mW/℃
Application
· Air conditioning equipment, water heaters, microwave ovens, various household appliances and household equipment
· Hybrid vehicles, fuel cell vehicles, various automotive electrical equipment
· Security equipment, OA equipment
· Medical and disaster prevention equipment
· Other high temperature and high speed detection

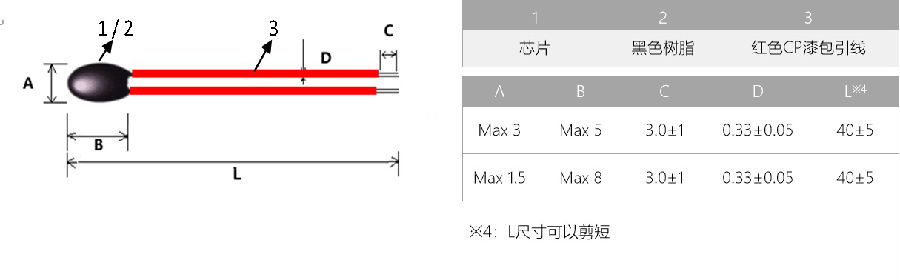

Referrence Drawing
Selection Guide
| Part Number | Zeroload Resistance ※1 | Specification | B value
parameter
※2 | Precision
deviation | Operating
Temperature
Range (℃) |
| Rating Temp. | Resistance | Precision deviation |
| 5K3470 | 25℃ | 5KΩ | ±1%
±2%
±3%
±5%
±T%※3 | B25/50 | 3470 | ±1%
±2%
±3%
±5%
±T%※3 | -40~125 |
| 10K3380/3435 | 10KΩ | 3380 |
| |
| 3435 |
| 10K3500 | 3500 |
| 10K3950 | 3950 |
| 10K4100 | 4100 |
| 15K4150 | 15KΩ | 4150 |
| 2.252K3935 | 2.252 KΩ | 3935 |
| 3K3950 | 3 KΩ | 3950 |
| 5K3950 | 5 KΩ |
| 50K3950 | 50 KΩ |
| 100K3950 | 100KΩ |
| 23K4200 | 23KΩ | 4200 |
| 100K4200 | 100KΩ |
| 100K4150 | 4150 |
| 100K4450 | 4450 |
| 3.4513K3435 | 50℃ | 3.4513 KΩ | B25/85 | 3435 |
| 31.765K4550 | 50℃ | 31.765KΩ | 4550 |
| 2.028K4330 | 86℃ | 2.028 KΩ | 4330 |
| 5K3300 | 25℃ | 5K | 3300 |
★The above is a part of the regular model, does not represent all parameters, contact us for more.
